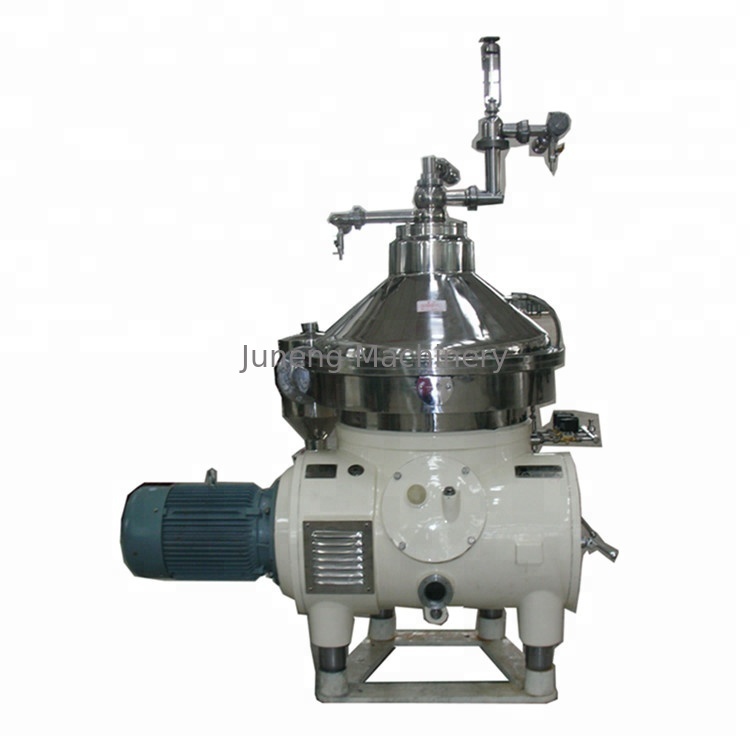

Industrial Milk Cream Separator 5000-10000L/H 15KW 380V

  • Industrial Milk Cream Separator 5000-10000L/H 15KW 380V
  • Industrial Milk Cream Separator 5000-10000L/H 15KW 380V
  • Industrial Milk Cream Separator 5000-10000L/H 15KW 380V
  • Industrial Milk Cream Separator 5000-10000L/H 15KW 380V
  • Industrial Milk Cream Separator 5000-10000L/H 15KW 380V
  • Industrial Milk Cream Separator 5000-10000L/H 15KW 380V
Luogo di origine Jiangsu, Cina
Marca Juneng
Certificazione CE Certificate
Quantità di ordine minimo 1
Prezzo $32,000-32,899

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Voltaggio 380 V/50Hz Energia 15 kW
Peso 1600 kg Dimensioni 1800*1200*1750 mm
Materiale SUS304/SUS316 Capacità 5000-10000L/H.
Componenti principali PLC, cuscinetto, motore Pressione di ingresso 0,05 MPa
Pressione di uscita 0,1-0,4MPA Potenza motoria 15 kW
Velocità rotante Alto Livello di rumore Inferiore
Stabilità operativa Stabile Sistema di tenuta Completamente sigillato
Efficienza di separazione Perfetto
Evidenziare

Industrial milk cream separator 15KW

,

High-capacity milk separator 10000L/H

,

380V milk cream separator machine
Lasciate un messaggio
Descrizione di prodotto
Milk Factory Use Skimming Separator Fresh Cream Machine
Product Application
Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency, and lower energy consumption. The advanced inlet and outlet design ensures gentle treatment throughout the separation process, preventing destructive air entry and maintaining product quality.
Milk products vary widely in composition, with even basic market milk containing different fat contents. The separator processes diverse dairy products including butter, cheese, quark, and yogurt.
Industrial Milk Cream Separator 5000-10000L/H 15KW 380V 0 Industrial Milk Cream Separator 5000-10000L/H 15KW 380V 1 Industrial Milk Cream Separator 5000-10000L/H 15KW 380V 2 Industrial Milk Cream Separator 5000-10000L/H 15KW 380V 3
Main Features
  1. High rotating speed
  2. Operating stability
  3. Completely sealed inlet and outlet system
  4. Lower noise operation
  5. Perfect separation efficiency
Technical Specifications
Model Treatment capacity (L/H) Inlet Pressure (Mpa) Outlet pressure (Mpa) Motor power (Kw) Weight (Kg) Outline dimension (mm)
DHN360 2000-5000 0.05 0.1-0.35 7.5 1200 1530*1150*1500
DHN470 5000-10000 0.05 0.1-0.4 15 1600 1800*1200*1750
DHN550 10000-20000 0.05 0.1-0.4 22 2300 1950*1550*1960
DHN616 25000-35000 0.1 0.3 37 3000 2185*1728*2082
Industrial Milk Cream Separator 5000-10000L/H 15KW 380V 4 Industrial Milk Cream Separator 5000-10000L/H 15KW 380V 5
Machine Components
Name: Drum
Brand: Juneng
Origin: China
The drum is the high-speed rotating component that performs material separation, serving as the heart of the separator. It receives power through precise taper fitting with the vertical shaft. Each numbered drum component must remain in its original configuration to maintain balance and safety.
Name: Shaft
Brand: Juneng
Origin: China
The vertical shaft transmits power through a speed step-up gear and high-speed rotating components. Its elastic bearing support allows precise height adjustment for optimal operation positioning between drum, centripetal pump, and water-inlet housing.
Industrial Milk Cream Separator 5000-10000L/H 15KW 380V 6 Industrial Milk Cream Separator 5000-10000L/H 15KW 380V 7
Service Support
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
Industrial Milk Cream Separator 5000-10000L/H 15KW 380V 8
After-Sales Service
  • Machine installation and operation training
  • Overseas engineer support for machinery service
Industrial Milk Cream Separator 5000-10000L/H 15KW 380V 9
Packaging & Delivery
Industrial Milk Cream Separator 5000-10000L/H 15KW 380V 10
Packaging Details
Size 123 (L) * 456 (W) * 789 (D)
Weight 1.2 T
Standard packaging uses wooden boxes (Size: L*W*H). European shipments include fumigated wooden boxes. For tight container fits, we offer PE film packaging or custom solutions per customer request.
